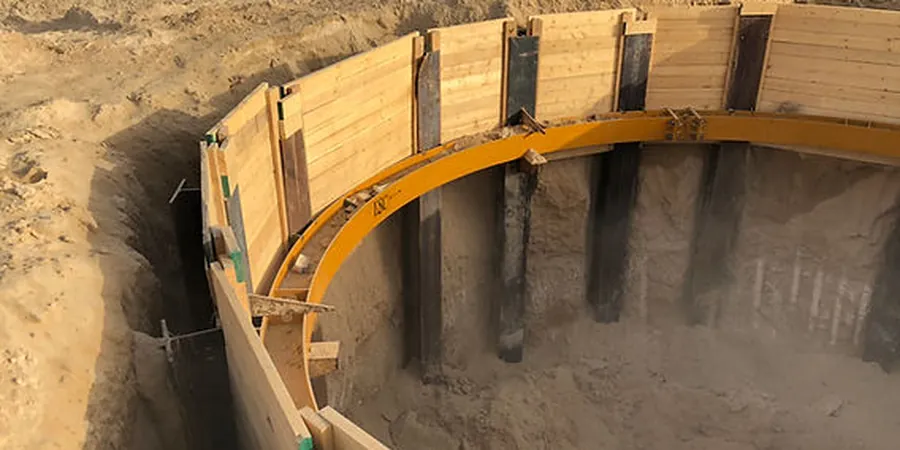

Oakville's development along the Lake Ontario shoreline has always contended with the legacy of glacial Lake Iroquois. The town sits on a complex sequence of Halton Till overlying Queenston Shale, and in many areas, thick deposits of soft, compressible lacustrine clay. As the town expanded from its historic harbour roots into the residential corridors north of the QEW, foundation engineers repeatedly encountered conditions where shallow footings simply could not transfer loads safely. In our experience, the transition to deep foundations becomes inevitable once you cross into the clay plains near Sixteen Mile Creek. A pile foundation design that properly accounts for the stiff clay till interface and the weathered shale bedrock is not just a structural requirement, it is a long-term investment against differential settlement. We often combine our in-situ permeability testing in overburden soils to refine the pile shaft friction parameters before finalizing the design.
In Oakville's lacustrine clays, we don't design piles in isolation. We design for the long-term settlement of the entire soil column.
Methodology and scope
Local considerations
We mobilize a high-strain dynamic pile tester, essentially a heavy drop weight and a sophisticated set of strain transducers and accelerometers, to verify the capacity of driven piles on Oakville sites. The biggest risk we see is not during the test itself, but in the assumptions made before driving starts. In the clay plains of central Oakville, the pore water pressure generated during pile driving can take days to dissipate fully, a phenomenon called setup or freeze. If you test too early, the capacity appears dangerously low. Conversely, if the shale bedrock is inclined or contains large boulders, the pile toe can be damaged or refuse prematurely on what looks like a solid layer but is just a large cobble within the till. We mitigate this by correlating the driving logs with the static analysis and ensuring a restrike test is performed after a minimum 48-hour waiting period, a protocol that has saved more than one Oakville project from unnecessary pile extensions.
Applicable standards
NBCC 2020 (National Building Code of Canada), CSA A23.3:19 (Design of Concrete Structures), ASTM D4945-17 (Standard Test Method for High-Strain Dynamic Testing of Deep Foundations), CFA DFI Pile Design Manual (Canadian adaptation)
Associated technical services
Static Capacity Analysis
We calculate the ultimate skin friction and end-bearing for driven and drilled piles using site-specific soil parameters, applying the Canadian Foundation Engineering Manual methods for cohesive and cohesionless layers.
Lateral Load and Deflection Analysis
Using LPILE or equivalent software, we model the pile-soil interaction under wind and seismic loads, critical for the exposed piers of Oakville's waterfront structures where the clay offers limited lateral resistance.
Pile Integrity Testing
Low-strain integrity testing (ASTM D5882) is performed on cast-in-place piles to identify potential necking or voids that can occur during concrete placement through the saturated silty clays.
Settlement and Downdrag Assessment
We quantify the long-term consolidation settlement of the surrounding soil and calculate the resulting negative skin friction load on the pile shaft, ensuring the structural design includes this additional axial demand.
Typical parameters
Frequently asked questions
What is the typical cost range for a pile foundation design report for a single-family home in Oakville?
For a standard residential lot in Oakville, the engineering design, including the geotechnical investigation and the pile design report, typically falls between CA$1,990 and CA$7,740. The exact cost depends heavily on the depth of the overburden, the number of piles required, and whether dynamic load testing is performed on-site.
How deep do piles typically need to go in Oakville to reach competent rock?
In the southern parts of Oakville near Lake Ontario, piles often extend 12 to 18 meters to socket into the Queenston Shale. Further north, the overburden of Halton Till and glaciolacustrine deposits can be deeper, and we sometimes design longer friction piles if the till is dense enough to provide adequate capacity without reaching the shale.
What is negative skin friction and why is it a concern here?
Negative skin friction, or downdrag, occurs when the soil surrounding the pile settles more than the pile itself, effectively pulling the pile downward. In Oakville, the thick layers of compressible lacustrine clay are still consolidating under their own weight and any new fill, making this a primary design consideration that we address by adding a bitumen coating or by increasing the pile's structural capacity.
Can you use driven piles instead of drilled shafts in residential areas?
Yes, driven steel H-piles are common in Oakville residential projects because they can be installed quickly and generate less spoil than drilled shafts. However, we must carefully manage vibrations to avoid disturbing neighbouring properties, and the final set criteria is strictly monitored to ensure the pile has reached the required capacity in the dense till or shale.
